Extended Settings

<< Click to Display Table of Contents >>

Navigation:  NITRO™ Forms > Left-side Pane > Advanced >

Extended Settings



These are used in special circumstances. Contact Crow Canyon Support for details and guidance.



Extended settings 1

Extended settings nitro form 2





ValidationMessageDisplayTime: Validation massage will be displayed for specified amount of time.

ValidationMessageDisplayType: Specify validation message display type.

ValidationMessageColor: specify the color in which you want to display the validation message.

SectionTitleTemplate: it will show the section title value in each section header.

 section title in extended settings



HideViewVersions: If this is true, it will not show version history in item ribbon.



 When value is 'true'



 Hide view version true



 When value is 'false'



 Hide viewversion is false



LoadCurrentUserADGroups: This is to check whether to consider Active Directory Groups also. If true, we read AD Groups in evaluating column permissions, tab permissions etc. If false, we only consider SharePoint groups (configured for the site)



ShowColumnNameTooltip: if this setting is 'true', it will show some info when we hover over a column value box. If this setting is false, then it will not show column info on hovering over the column value box.



DisableRequiredColumnNamesNotification: if this setting is 'true', it will show required column names notification when form is saved if value is not specified for these columns. Required columns are marked with star.



 When value is 'true'



 Required column value is true



Clicking on bell will show required columns names whose value needs to be provided before saving the form.



 Required columns names





 When value is 'false'



 when disable required column value false



ShowFormEventActionProgressIndicator: this is to temporarily disable clicking on columns/tabs while the form event action is doing the required calculations. If true, then when the form event action is in progress, we get a loading icon, freezing the form behind (for few seconds). If false, FEA calculation goes behind the scenes and no loading icon appears.



TimePickerInterval: This is for date and time columns. Time part will be separated in the specified minutes. if the value is 15, values in time picker will be separated in 15 minutes intervals like below.

 Time picker interval





HideColumnDescriptionInDisplayForm: if it is 'true', it will hide column description in display form.



 when value is 'false'

 column description false



 When Value is 'true'



 Description hide

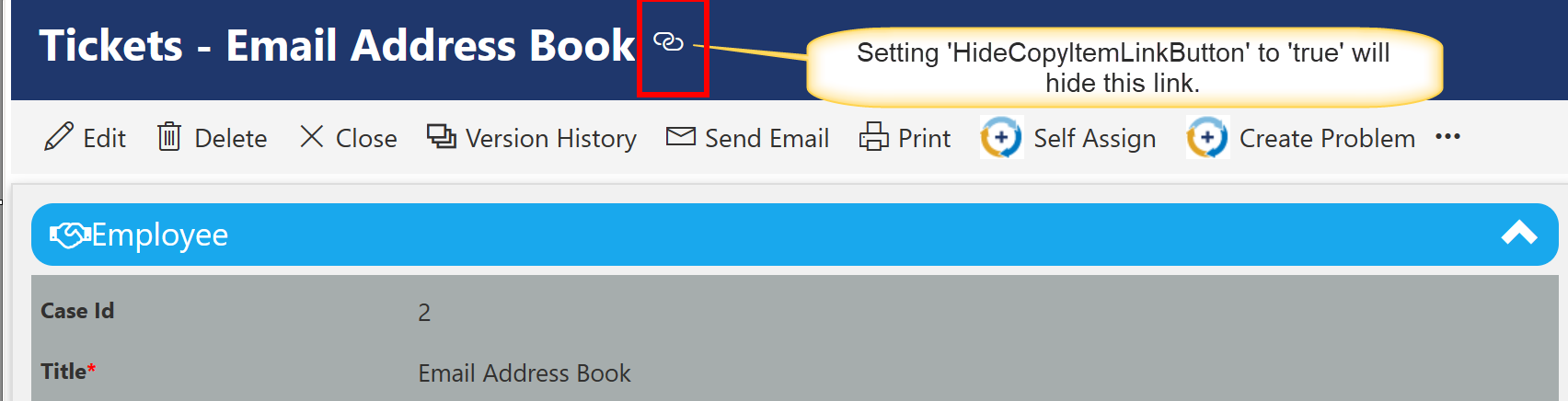

HideCopyItemLinkButton: setting 'true' will hide the copy item link button.



 when value is 'true'



 Hide item copy link





MultiValuesInSeparateLines: If there are columns in list that have multiple values, then set 'true' in this setting to show multiple values in separate lines. if this setting is false, multiple values will be shown in single line separated by a separator.

 When value is 'true'

 Multiple values in separate line

 When value is false

 Multiple values in same line





DisableHyperLinks: specify column names here to disable hyperlink property for these column values.Refer Extended Settings In NITRO Forms for disabling hyperlink



HideFormHeaderInWindow: if this setting is 'true', it will hide form header in window. if this setting is false, form header will be shown in window.



  when value is 'true'



 hide form header



 when value is 'false'



 show form header



TabScrollable: if we have more tabs in form than the available width, then buttons come to move tabs left/right.

if this is false, then tabs will wrap to second line and scroll buttons will not come.

 when this setting is true:



 Tab scrollable true



 When this setting is false:



 Tabs scrollable false



WebcamAttachment: this is for devices with camera like laptop etc. With this, photo can be taken with Camera and attached to item.

if this is false, then webcam will not be available when adding attachments.



         when this setting is true:



         Webcam attachment
